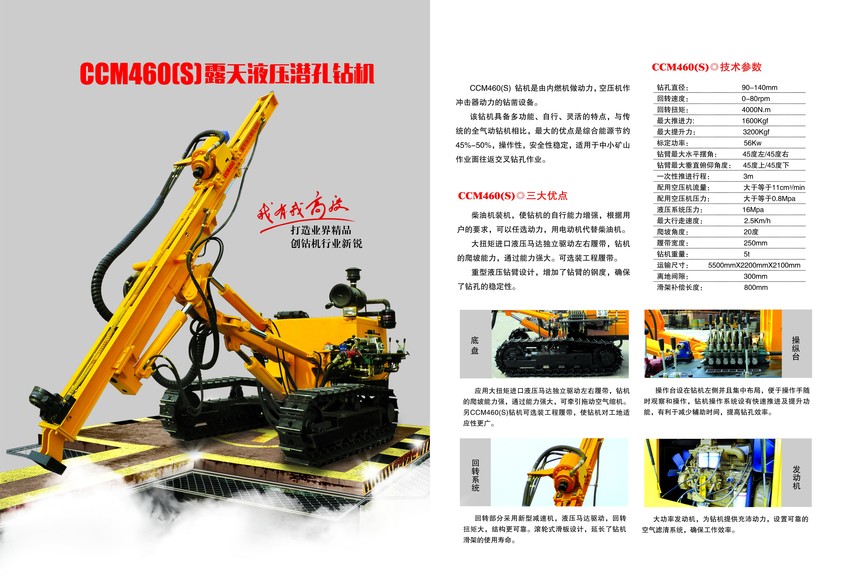

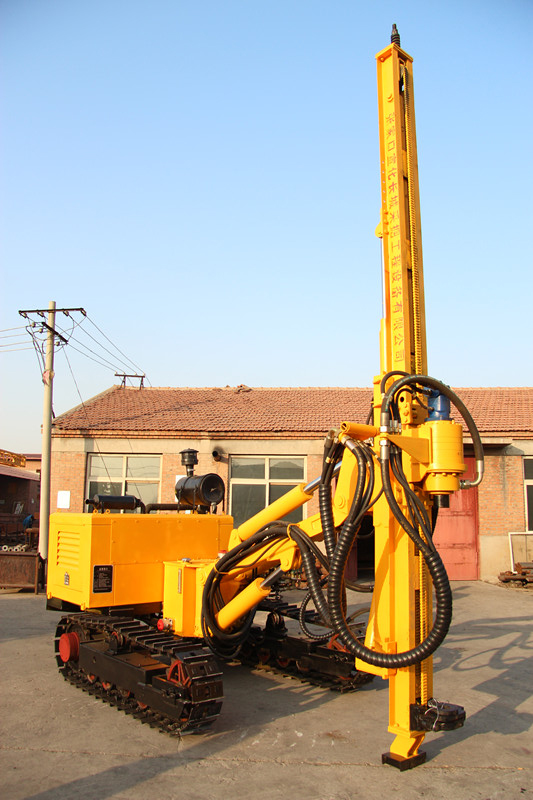

CCM460钻机

暂无价格
收藏
  • 产品说明
  • 产品参数


CCM46O是新型、高效、半机械化接卸钻杆,具有结构简单、使用轻便、辅助时间短、风耗小等特点。钻机通过提高冲击功和冲击频率,保证了进尺快、效率高。根据岩石情况及穿爆、锚索工艺的要求,用改变过渡接头的方式使之成为多孔径潜孔钻机,能够钻凿φ70~150mm孔径,岩石在普氏硬度系数f=8~16范围内都能获得很高的凿岩速度,是露天钻凿*孔、锚索孔、采矿钻凿大孔径的深孔,掘进主巷道,准备巷道,管棚孔,削顶孔及预裂孔和开采破碎必不可少的凿岩设备。

CCM46O is a new, efficient, semi mechanized loading and unloading drill rod, and has the characteristics of simple structure, easy use, auxiliary time is short, small air consumption. Drill through improving the impact energy and impact frequency, ensure the footage quickly, high efficiency. According to the rock and blasting, anchor cable technology, by changing the transition joint way to become multi aperture DTH Drill to drill, with 70 ~ 150mm diameter, rock can obtain the drilling speed is very high in the Platts hardness ratio range of f=8 ~ 16, is deep open pit drilling blasting, anchorage cable hole drilling, mining large aperture, driving the main roadway, preparation roadway, pipe shed hole, cut off the top hole and pre splitting holes and broken rock drilling equipment essential for mining.


技术参数:


钻孔直径:80-150

回转速度:0-120rpm

回转扭矩:3400N.m

最大推进力:1600Kgf

最大提升力:3200Kgf

柴油机功率:56Kw/电机37KW

柴油机型号:玉柴4018

钻臂最大水平摆角:45度左/45度右

钻臂最大垂直俯仰角度:40度上/15度下

滑架最大摆角:10度左/91度右

一次推进行程:3000mm

配用空压机流量:大于等于11立方/分钟

配用空压机压力:大于等于0.8Mpa

液压系统压力:16Mpa

最大行走速度:2.5/3.5Km/h(双速)

爬坡角度:20度

履带宽度:250mm

钻机重量:5t

运输尺寸:5500mm*2400mm*2100mm

离地间隙:300mm

滑架补偿长度:800mm

Technical parameters:

Bore diameter: 80-150

Rotary speed: 0-120rpm

The rotary torque: 3400N.m

The maximum thrust force: 1600Kgf

Maximum lifting force: 3200Kgf

The power of the diesel engine: 56Kw

Diesel model: Yuchai 4018

The maximum horizontal drilling arm swing angle: 45 degrees /45 degrees right left

Drill arm maximum vertical pitch angle: 40 degrees /15 degrees

The sliding frame maximum pendulum angle: 10 degrees /91 degrees right left

A push stroke: 3000mm

Equipped with air compressor flow: greater than or equal to 11 cubic meters / minute

Equipped with air compressor pressure: greater than or equal to 0.8Mpa

Hydraulic system pressure: 16Mpa

Maximum walking speed: 2.5Km/h

The climbing angle: 20 degrees

Track width: 250mm

Weight: 5T

Transport size: 5500mm*2400mm*2100mm

Ground clearance: 300mm

The sliding frame compensation length: 800mm
